Posted on 09/12/2006 at 14:46

The master piece



Like every kid, I ever wanted to build my own go-kart with a lawn-mower engine... And years are passing away, and we never build the go kart...

Then one day, I found the realisations of VW-Bratz, a UK base company, which now has disappeared. Wow! Not only it's a DIY go-kart, but it even looks like a VW! I definitely need one! (yeah, yeah, I know, I'm 6 years old in my head... So what??icone smiley wink)

Those mini splits are pure perfection marvels, but... Well, this perfection has a price (300£ the shell, around 450€)! (see on FreeBugRiders the "pour les gosses (For Kids)" thread to see pictures of those VW Bratz splitties). Plus, 1.60 meters long is pretty big, therefore bulky to bring on a meeting.

I then found Mini Buggies in Netherlands, superbs as well, little less bulky, but less original, and still a little bit expensive (260€ the shell alone) for a toy I'll use twice a year...

So, I started to think about making my own model of mini-VW... I first started thinking about a mini bay window combi, then a beetle... But finally, the Thing is way easier to make! Plus, I own a real one to take measures on, and this will definitely be more original! icone smiley wink

So I started taking all the measures on Küby, my Thing, then I transfered it into a 3D model using Sketchup. I decided to make it scaled 1/3 : this is the same scale as the VW-Bratz Splitties, if I meet some one day, well make a perfectly scaled 1/3 mini-meeting... And a 117cm long shell by 50cm wide is a good compromise between bulkiness (therefore transport) and "comfort", the final goal being to give it an engine and drive it...
Here is the 3D model... Now I have to build a wooden master out of it, using the numeric model's measures. So, after buying a router and a few woodcuts of MDF, I start making a master as close as possible to the original one...

Click to see pictures full size...

Here we are! July 2006, the master piece is finally ready to go, now I have to make a fiberglass mould out of it to make the mini-Thing shells... icone smiley wink
Posted in : Mini Thing
Displayed 80407 times.
icon permalink
Posted on 14/12/2006 at 22:48

The mold / The shell

As I don't have the required skills to create the mould (and I was rather scared of screwin'up my master!), I call for help my friend Seb, of DinkyGarage, who's job is fiberglass stuff...

So, this is a 5 pieces mold that Seb built out of my master (which won't survive the operation : R.I.P!).

The numerous grooves (doors, hoods...) obliged us to multiply the number of mold parts... Unless the removal from the mould would have been impossible...
Once the mold created, we still have to take a first shell out of it... December 2006, the very first shell comes out of the mold!
Here are some teaser pictures of the thing, the bare shell just put down on 4 karting rain-tires equipped wheels, which I will use to motorize it :
Highly cool, isn't it?

I'm more than happy of the result... There's still a lot of work to come, but Seb obviously made a great job... Many thanks dude! icone smiley wink

OK, the shell is out, let's make a chassis to put under it!
Posted in : Mini Thing
Displayed 92826 times.
icon permalink
Posted on 26/02/2007 at 12:22

XXS Thing shells for sale!

For those of ou who follow the project, I've got two XXS Thing shells for sale... 181 euros each, shipping charges to be defined.

Hurry up guys, there won't be enough for everyone : the current mold is broken, no new shells expected before long... If any...

The shells I sell are the two rightmost ones on the above picture (detailed in the two below pictures)... Want more information? contact-me... Later will be too late! icone smiley wink

EDIT 03/14/2007 : One of the shells for sale is already sold... If you want the very last one, hurry up!
EDIT 13/04/2007 : The second shell, reserved for a while, has been shipped this morning...
Posted in : Mini Thing
Displayed 89756 times.
icon permalink
Posted on 04/06/2007 at 18:10

Men at work...


For those who think I'm twiddling my thumbs... More to come real soon!
Stay tuned...
Posted in : Mini Thing
Displayed 88025 times.
icon permalink
Posted on 14/02/2023 at 22:02

Mini Thing : Chassis, Motor, Electricity, and first ride!

Chassis, Motor, Electricity,
and first ride!
Mini Thing
Here's a project that sat in the attic for 16 years!

The project was on hold since I had sold my VW Thing, I had then lost the motivation to make a scale version of it... But I managed to buy back my Thing in September 2020, 13 years after selling it!

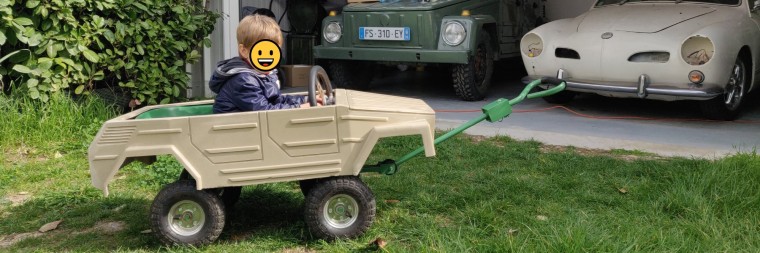

But more important, in the meanwhile my son was born (2017), and when the little one saw, two years ago, the body/shell of the Mini Thing collecting dust in the workshop, he started a constant and intensive lobbying to get the project re-prioritized. icone smiley laugh

Chassis

Back in 2007 I had started a chassis from square steel tubes, but it was not looking good from the beginning. I had built it in a hurry, as I had convinced myself I could get it to drive within 48 hours for an upcoming meeting. Unsurprisingly, it did not work out. To give you a glimpse of the "quality", as I did not own a lathe back then, I chose to directly spot weld the brake disc and transmission sprocket on the axle! icone smiley meh
Add on top of that the long welding session in an underground parking box, until 2AM, wearing a tank top, resulting in an unforgettably glowing sunburn... Talk about a disaster. icone smiley laughicone smiley laugh

So, long story short, I started again from scratch, by sourcing two go kart chassis as base. One I bought for cheap (50€, thanks Gus!), and the other one discarded on the pavement just 100 meters from my place - fate! But you should have seen the face of the 2 cops that crossed my path, while I was dressed in a shirt and tie (I was heading to work), at 5:30AM, holding a wrecked go kart on my shoulder... Fun times. icone smiley laughicone smiley laughicone smiley laughicone smiley laugh

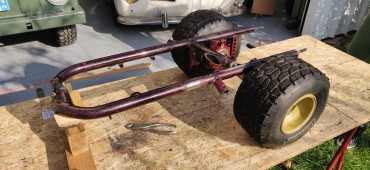

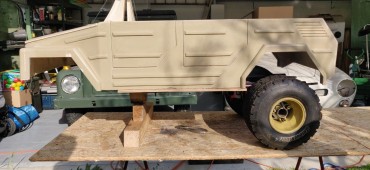

After some Sketchup design to figure out the best way to optimize my cuts, I begin with the rear end of the chassis. I cut away a section of the go kart chassis, and weld it back together, while putting it upside down to gain some much needed ground clearance. A go kart usually sits like an inch from the ground, and that's not the stance I'm going for here. icone smiley wink

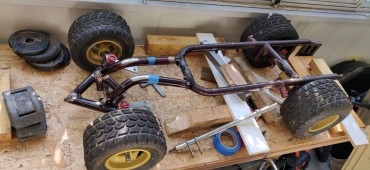

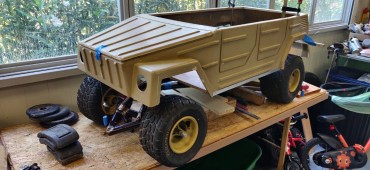

For the front axle I first trace everything on an OSB sheet to figure the total width... Which turns out to be 102cm, that I need to cut down to 58 cm to align the wheels with those of the rear end. So 44cm to be removed from the middle, not much is going to be left after that!

I make temporary little brackets/mounts to keep the geometry of the front axle while I cut everything, not that I intend to drive it very fast, but to ensure the steering wheel will go back to neutral on its own. Said brackets were actually cut out of the first chassis I made back in 2007, which I dug out of its rusty grave - at least it will have served a purpose! (in the end I'll have recycled most of it in this project! icone smiley laugh)
But with my method to cut the front axle, I end up with a massive spike in the front of the car, not exactly child-safe, so I take care of that...
In the back and the front, I build stands/brackets to hold the body shell, and later on attach the bumpers. Never underestimate the destruction power of an overexcited 5 yo. icone smiley wink I add a plate to bolt the motor on, then it's primer, two coats of dark gray, and the chassis is ready.
Let's be honest here, I was low on gas so some of my welds here are nothing short of atrocious, and the actual relative geometry of front and rear axles is faaaaaaaaaaaaar from perfect, but since the objective has never been to do time attack on a race track, that will have to do! #goodenough icone smiley laughicone smiley wink

As for the steering parts, I pick in the stock of go kart parts I've accumulated along the past 15 years. I turn down on the lathe the aluminium steering links, leaving the left-handed thread on one end and re-threading the other, to keep the adjustment like on the original go kart. I also drill new holes in the spindles to increase the steering angle.

Motor

I dropped the initial idea of a gas-powered engine, not suitable for a kid, noisy... I switched to an electric brushless motor 2000W, bought on AliExpress (159€).

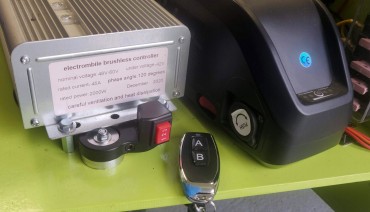

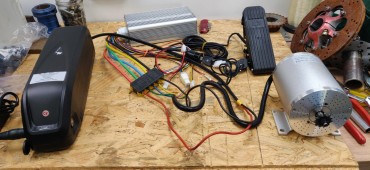

The motor kit comes with a controller, a throttle pedal, a key-activated main switch, a 3 positions selector to limit the speed (not a bad thing to have when giving the bloody thing to a little boy), the sprocket and chain...

The controller comes with an input to activate the motor electric braking, which gives me the opportunity to add a remote control to stop the car at a distance, in case the little one gets a bit too enthusiastic behind the wheel. icone smiley wink

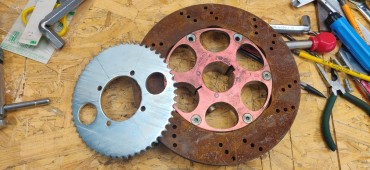

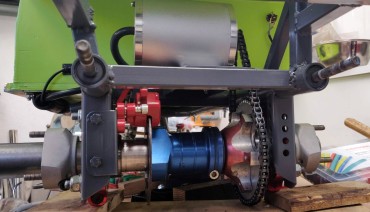

To adapt the sprocket on the rear axle, I used a brake hub I found on one of my sacrificial chassis. Turned it down on the lathe, 6 M6 threads, and done.

Brakes

I start with a 20€ disc-brake kit for bikes, mechanically actuated, not hydraulically. First because again, I'm not making a racing go-Kart, but also the maintenance will be much easier, limiting the risks of seizing (not even mentioning cost).

I modified and moved the original go-kart brake pedal, with a linkage rod to action the lever on the caliper. The caliper got modified as well to adapt it to the kinematics of the movement. The disc is secured on the axle using a wheel hub I modified on the lathe.

The brake works fine, but it doesn't have the "bite" I was hoping for, due to the linkage rod buckling under the effort, which reduces the power transferred to the caliper.

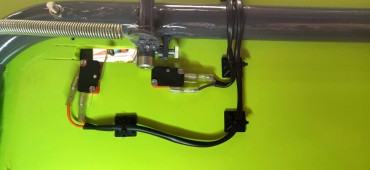

To compensate for that, I have added a micro switch on the brake pedal to activate the electric braking of the motor (which recharges the battery as well!). This will do until I modify the system, so the linkage would be pulled instead of pushed, or maybe replace it with a cable... Room for improvement.

Interior

OK, "interior" might be a bit of a stretch, but anyway, I wanted a "child safe" place for my son.

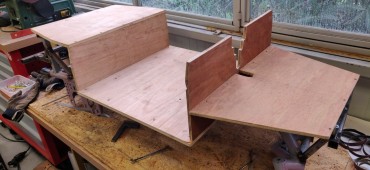

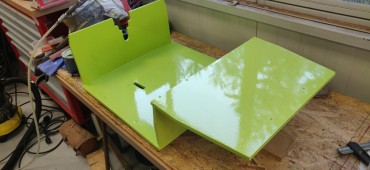

So I build a floor, seating area and dashboard out of 10 and 12mm thick plywood ; this will prevent the little one from putting his fingers in the rear chain and sprockets, or his feet in the steering in the front.

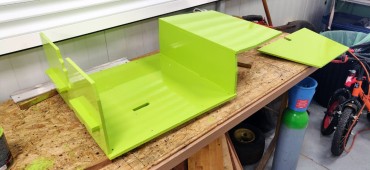

Sanding, gesso, some more sanding, and two coats of glycerophtalic paint using a foam roller (flashy green, but I had the pot left on a shelf).

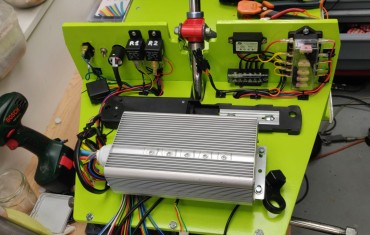

The board in the front under the hood will hold the battery, controller, and most of the electrical circuit. Two pieces of aluminium angle on the sides will hold the body shell in place.
On the "dashboard" we have the key switch, and the switch for the headlights. Below the seat, on the right hand side, a switch activates the reverse. Upcoming : a gauge to track the battery charge status.

Windshield

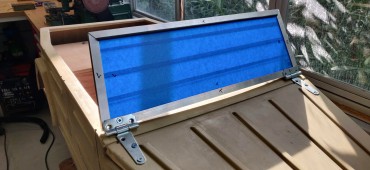

I found at my local DIY store 2 hinges that look a lot like those of the original VW Thing...

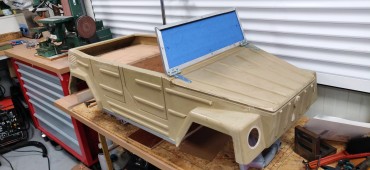

So with a bit of acrylic glass, and a length of aluminium U profile, I got myself a scaled version of the windshield! I even have some rubber seal (initially intended to be put on your car's doors to protect them from impacts/scratches) that will look great around it once everything is painted. I'll keep the blue tape on the glass until everything is painted too.

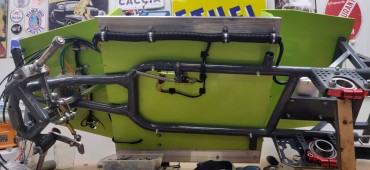

Assembly and electrical circuit

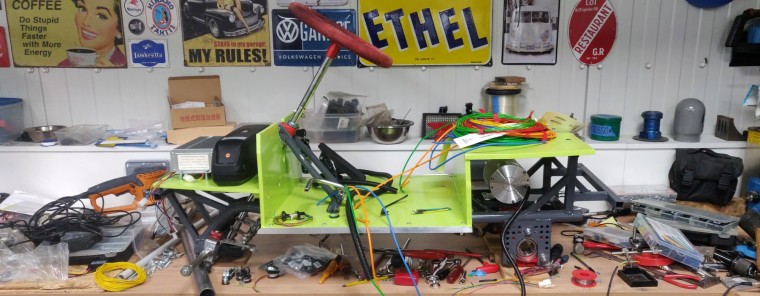

Time to put everything together!
The beast is powered by an e-bike battery, the biggest expense on this build : 295€ on AliExpress. It comes with a standard XT60 plug, 52 Lithium-ion cells type 21700 3.7V/4800mah arranged in a 13S4P pattern, for a grand total of 19.4AH at 48V. Most probably way oversized... icone smiley wink

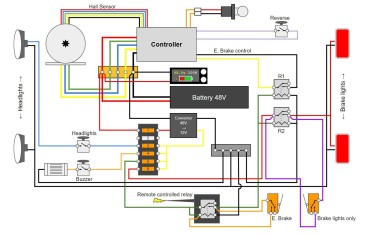

I install a voltage reducer to get 12V from the battery 48V, and put a fuse box to power each of the elements :
  • a buzzer as horn (activated from a push button on the steering wheel)
  • LED headlights in the front (T10 LED lamps)
  • rear brake lights (48 smd LEDs boards), activated by a micro switch on the start of the travel of the brake pedal)
  • A remote controlled relay, to activate the electric brake (security when the little one is driving) - with 2 relays behind so that the brake lights turn on as well.
Ok, one single fuse would probably be enough, but hey, let me have some fun alright? icone smiley laugh

First ride!

The project is finally on its wheels, 16 years after starting it! Yeah, I know, I'm not exactly fast... icone smiley laugh
Initial feedback :
  • 2000W accelerates hard! I had to put a piece of wood underneath the throttle pedal for my son to be able to drive the thing. And the 3 speed selector is a blessing!
  • When giving it full throttle, the front axle loses grip and the steering becomes nothing more than a recommendation... icone smiley laugh The lack of differential on the rear axle doesn't help, for sure.
  • Boy am I glad I included the remote control to stop the Mini Thing at a distance, it has effectively prevented many accidents from happening to my son. In his defense, he's constantly improving his driving skills, and keeps beating his own time on the Nürbur-Green (aka our garden icone smiley laugh)
  • High stance + reduced track width + high speed = if you try to steer too tight, the wheels on the inside of the turn will lift... And, yes, admittedly, I did manage to end up on the side myself. icone smiley laugh
  • I need to shorten the steering links by a few millimeters ; right now, even adjusted at their minimum, the front wheels have a pretty massive toe-in, giving some random behaviors when steering on mixed-grip terrain.
  • In hindsight, I should have reduced the caster angle on the spindles, it makes the steering a bit hard for the little one.
  • I should have made a more serious frame/jigs, as the geometry of the chassis is off by quite a bit... I managed to compensate with some adjustments, but it could have been much better.
  • The tires, at over 15 years old, are dead dry, and don't hold pressure any longer. I'll swap them shortly.

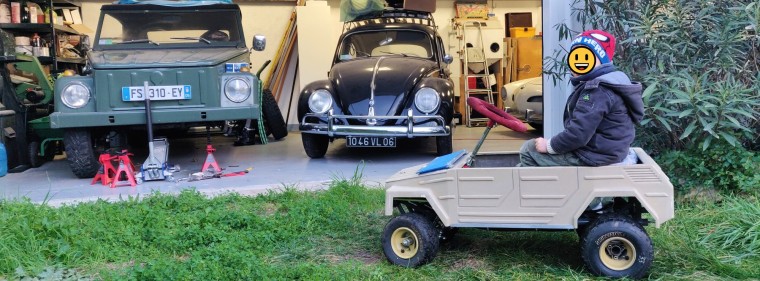

I'll gladly admit this last picture gives me a big smile, for more than one reason. It took 16 years to get there, but it was worth it! icone smiley wink

I still have quite a few things to do on this project before I can consider it complete : paint, bumpers, headlights, brake lights, seating, battery gauge... But the little one was able to drive it for Christmas, and that's all that matters!

Stay tuned for the finishing touches... Soon!
