Bubul : Plans!

I can't remember how many times I've been asked for the plans of my RC submarine... But the trick is, I never made any plans!

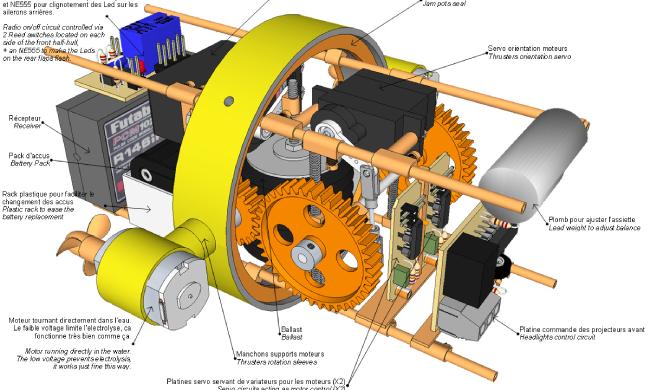

But I finally decided to make some, so after some efforts with a caliper on one hand, andSketchup in the other, here is the result!(and it was a good challenge for my Sketchup skills! 😉)
The synthetic plan is available as pictures below, you can as well download it as PDF, or even download the complete Sketchup model, everything is designed down to the 1/10th of millimeter! 😁

Did I ever mention I really really like Sketchup? 😁

Edit 2014/03/21 : Bonus, an interactive 3D view! 😁
